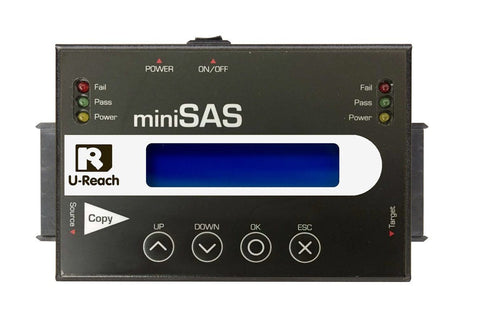

U-Reach 1 to 1 miniSAS Series SAS/SATA/SSD Duplicator and Sanitiser
- OVERVIEWS
- TECH SPECS
- USER MANUAL
Overview
1) Supports HDD 1 to 1 copy.
2) Copy speed of up to 18 GB per minute (300MB/sec).
3) Auto skip up to an unlimited number of bad sectors on the HDD.
4) Auto power control protects your HDD (HDD is only powered during operation).
5) Supports 2.5", 3.5" SATA, ZIF HDD, SSD, SAS.
6) Supports 3 different duplication modes: Quick Copy (System & files), All partitions and Whole HDD.
7) Data Sanitization: quick erase, full erase, secure erase, and DoD erase.
8) Supports SATA I/II/III and 4Kn HDD.
4 Types of Copy Modes 4 copy modes available to meet different duplication task requirement.
12 Times Faster on Quick Copy Automatically skips blank areas, reduces wasted time, and increases work efficiency. Quick copy supports MBR, GPT, NTFS, Linux (ext2/3/4), Mac(HFS, HFS+, HFSX), and FAT16/32/64 formats.
3 Types of Erase Modes Complies with U.S.A department of defense 5220.22M data erase standards. It will overwrite HDD 3 times, to make sure the data cannot be recovered. LED Indicators Each ports has 3 color indicators. It shows the real time status.
Red Indicator: Fail
Green Indicator: Pass/OK
Yellow Indicator: Powered
Easy to carry and Multi-Purpose
Supports Various type of Interfaces
- Supports 2.5", 3.5" SATA HDD & SSD without an adapter.
- Supports mSATA, SATA DOM, eSATA, iVDR, M.2(NGFF), and MicroSATA with an additional adapter.
General
| Model | Mini SAS Series |
| Target | 1 |
Specification
| Maximum Transfer Speed | 18.0GB/min. *Actual performance is dependent on HDD transfer speeds* |
| Capacity | Supports the largest sized devices available on the market. |
| Operating Type | Stand-alone, FPGA-based operation (Non PC-based) |
| Supported Languages | English, Japanese |
| LCD Display | Backlit Monochrome LCD Display |
| LEDs | 3 LED Indicators per Port: Yellow (Power), Green (Pass), and Red (Fail) |
| Control Panel | 4 Push Buttons(▲, ▼, OK, ESC) |
Features
| Copy Modes | Quick Copy (Systems & Files Copy), All Partition Copy, Whole Device Copy, Percentage Copy |
| Compare Function | Bit-by-bit data comparison |
| Sanitization Modes | Quick Erase, Full Erase (NIST SP 800-88r1), Secure Erase, and DoD Erase |
Compatibilities
| Compatible Devices | 1.8"/2.5"/3.5” SATA/SAS HDDs and SSDs |
| Compatible Devices (with required adapter) | mSATA SSD, micro SATA, eSATA |
| Supported Formats | Quick Copy Function: FAT16/32/64, Windows (NTFS), Linux (Ext2/Ext3/Ext4), and Mac (HFS, HFS+, HFSX). Whole Device Copy Function: All Formats, including proprietary formats. GPT, MBR, and Advanced Formats |
| Supported O/S | All (Windows, Mac, Linux, and other stand-alone systems) |
Hardware specification
| Power Supply | Universal Power: 115VAC or 230VAC, 50/60Hz |
| Working Temperature | 5°C ~ 45°C (41°F ~ 113°F) |
| Storage Temperature | -20°C ~85°C (-4°F ~ 185°F) |
| Working Humidity | 20% ~ 80% |
| Storage Humidity | 5% ~ 95% |
| Product Dimensions | 9 in. x 7.5 in. x 3 in. |
| Weight (lbs) | 3 lbs. |
| Certifications | FCC, CE, REACH, ICES-003 |
| Compliance | NIST SP 800-88r1, ISO 27000 |
|
Title |
miniSAS (1:1) SAS/SATA Duplicator User Manual v A.02 |
| Download | Here |
