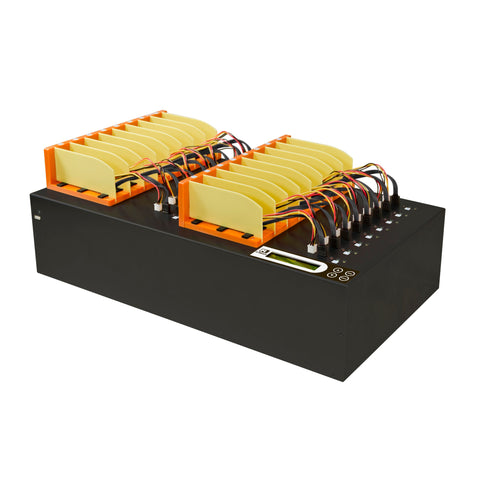

U-Reach 1 to 15 MT series HDD/SSD Duplicator and Sanitiser

U-Reach

U-Reach 1 to 15 MT series HDD/SSD Duplicator and Sanitizer - U-Reach eStore
SKU: MT1600G
Lead time: 10 Business Days
Please ensure that your browser cookies are enable for adding products to cart.


Features

  • Hard Drive Duplication: 2.5" / 3.5" SATA, M.2 SATA/mSATA SSD, IDE.
  • Brand Unimportant: Master & target drives can be a different size, brand & model.
  • Data Transfer Rate: Cloning speeds up to 9GB/min (150MB/sec).
  • Bad Sectors Handling: Auto skip up to 6000 error sectors on the HDD.
  • Auto Power Control: HDD is only powered ON during operation.
  • Modular Cable Design: When cables wear out, users can quickly swap them out, saving time and money.
  • 4 Copy Modes
    • Quick Copy Mode: The duplicator automatically copies only the data area, and supports Windows (FAT16/32/64/NTFS), Linux (ext2/ext3/ext4/LVM), and Mac (HFS/HFS+/HFSX).
    • Whole Media:: The duplicator copies from the initial sector to the end, bit by bit.
    • Device All Partitions: Copies or skips HPA, DCO, unknown partitions, modified formats
    • Device Percentage (%): Sets percentage of source capacity to copy.
  • Compare function: This allows you to verify the copy you just made is an exact duplicate ensuring no loss of data.
  • 4 Sanitization Functions
    • Full Erase: Erase all HDD Sectors.
    • DoD Erase: Complies with the U.S. Department of Defense's standard of erasing (DoD 5220.22).
    • Secure Erase: Erase content to NIST SP 800-88r1 compliant standards.
    • US Army AR 380-19 Erase: Erase devices(s) complying with Army Regulation 380-19 by the US Army.



Overview

 

General

Model MT-G
Target 15

Specification
Maximum Transfer Speed 9.0GB/min. *Actual performance is dependent on HDD transfer speeds*
Capacity Supports the largest sized devices available on the market.
Operating Type Stand-alone, FPGA-based operation (Non PC-based)
Supported Languages English, Japanese
LCD Display Backlit Monochrome LCD Display
LEDs  3 LED Indicators per Port: Yellow (Power), Green (Pass), and Red (Fail)
Control Panel 4 Push Buttons(▲, ▼, OK, ESC)

Features
Copy Modes Quick Copy (Systems & Files Copy), All Partition Copy,
Whole Device Copy, Percentage Copy
Compare Function Bit-by-bit data comparison
Sanitization Modes Quick Erase, Full Erase (NIST SP 800-88r1), Secure Erase, DoD erase and US Army AR 380-19 erase.

Special Features
Log Report Management Records all task details in the log report management system for enhanced production management.
PC Monitoring Real-Time status monitoring through PC

Compatibilities
Compatible Devices 2.5"/3.5” SATA HDDs and SSDs
Compatible Devices (with required adapter) 2.5", 3.5” IDE HDD, mSATA SSD, micro SATA, eSATA, iVDR
Supported Formats Quick Copy Function: FAT16/32/64, Windows (NTFS), Linux
(Ext2/Ext3/Ext4/LVM), and Mac (HFS, HFS+, HFSX).
Whole Device Copy Function: All Formats, including proprietary formats.
GPT, MBR, and Advanced Formats
Supported O/S All (Windows, Mac, Linux, and other stand-alone systems)

Hardware specification
Power Supply Universal Power: 115VAC or 230VAC, 50/60Hz
Working Temperature 5°C ~ 45°C (41°F ~ 113°F)
Storage Temperature -20°C ~85°C (-4°F ~ 185°F)
Working Humidity 20% ~ 80%
Storage Humidity 5% ~ 95%
Product Dimensions 30 in. x 20 in. x 15 in.
Weight (lbs) 31 lbs.
Certifications FCC, CE, REACH, MIL-STD-810H, DEF STAN 00-35, ADISA, ICES-003
Compliance MIL-STD-130N, NIST SP 800-88r1, ISO 27000


Title

MT/MTC Series IDE/SATA Duplicator and Sanitizers
User Manual v A.04
Download Here
